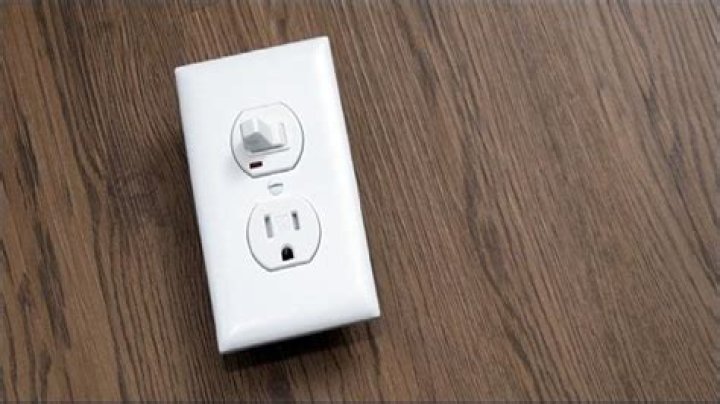

How to replace a light switch with a switch/outlet combo

Do you have a light in your home that just sits there unused? Do you need more outlets in a room or in your whole home and would like to use a light switch and turn it into an outlet that you need to use? Using a light switch can be useful because you do not need to redo all of the wiring to get it done. Just a few simple changes will be enough.

It is possible to turn a light switch into an outlet. By taking the right precautions and being careful when switching a few wires around, you can easily turn any light switch in your home into an outlet. Let’s take a look at how to do this process in your home.

Can I Make My Light Switch Into an Outlet?

Yes. It is possible to take a light switch in your home over to an outlet. If there is a light somewhere in your home that doesn’t seem to go anywhere, or you no longer use the light, then you may be tempted to change it over to an outlet that you can use instead. The process for converting your light switch over to an outlet is easier than you may think.

If you have some kind of light fixture in your home that you do not use, it may be a good idea to switch it over to an outlet. This is easier to do than many homeowners realize. You can even keep the light fixture and the switch and add in an outlet under it all. There are a ton of options available and it is possible to turn that light switch into an outlet if you choose.

How to Turn the Light Switch Into the Outlet?

Now that we know it is possible to do this, it is important to see what steps are necessary to turn that regular light switch over to an outlet. The steps include:

Find the Live Wire

One of the first steps that you should take before starting the replacement procedure is look around and find the breaker panel. This is inside the main panel and you need the one that will control the switch you plan to work on.

This needs to be turned off to keep you safe. Once the switch is turned off, you need to take the cover plate off and spend a moment testing the wires to see if they still give off any voltage. A voltage tester will help you see if this is a problem.

How To Test For A Live Wire

To test whether the breaker is off, you can turn on the switch you plan to do the work with and then place one lead of the tester on either of the black wires that are there and connect over to the switch. Place the other end of the tester on the green ground screw.

If you get any reading on the meter that is above zero or a light to show up when you do this, the circuit is still live. You need to turn off more breakers and not do any more work until you end up with a zero reading on the tester or the light on the tester no longer turns on.

Test The Terminals At The Light Switch

Once the right breaker is done, you can turn the breaker back on again before turning off the switch. Use the tester again to check out both terminals for power, using the same procedure we discussed above. One of the terminals is live and the other is dead here. Turn the breaker back off again. Then mark the live wire with some tape so you can remember it as you get to work through our next steps.

Steps For Converting the Switch Over to an Outlet

Remove Black Wires From Light Switch and Cap

Once you are done with the steps above, it is time to remove the black wires from the switch. Then take the wire cap and screw it onto the dead one before pushing it back into the box there.

This just helps keep everything out of the way for now. You do not want any exposed wiring to show up under the cap. If this does happen, you risk touching it with another wire or with your tools.

Remove Neutral And Ground Wires and Cap

From here, it is time to unscrew and then remove your ground wires. Make sure to separate them and then isolate the one wire that belongs to the cable that is the live hot wire. You can then untwist the white neutral wires that are inside the box, capping the one that is the same and belongs with the hot wire capped before.

At this point you should have a green ground wire, a white wire, and an uncapped black wire. Double check that all of these belong with the same cable.

Connect Wires To Correct Terminals on New Outlet

Now it is time to connect the black wire over to the brass terminals that come with the new outlet and the white wire that will then correspond to the chrome terminal.

A Note About GFCI Outlets?

Unless you plan to install a GFCI outlet, you get the choice of connecting these to either the lower or upper set of terminals. If you are doing the GFCI outlet, you need to connect them to the terminal that says LINE.

Connect Green Ground Wire

Finish all of this up with the ground wire. This wire needs to go over to the green ground screw. Make sure to screw it into the outlet and the box, and then add the right cover plate over all of it to keep the wiring inside.

Turn Circuit Breaker Back On

The very last step is to turn the circuit back on at the breaker panel. When this is done, you have successfully taken the light switch in your room and turned it into an outlet that you can use for anything!

I live in Minnesota, in a house that was gutted and rewired within the past 5 years. There’s a big closet I’m converting into a reading room. It doesn’t have a wall outlet, but does have a light switch. I was hoping I could replace the light switch with a switch/outlet combination.

The existing switch has two hot black wires going to it. The box also contains a pigtail of white wires and a pigtail of grounding wires. (Pictures below)

Does this seem like a possibility? If so, how would I wire the switch/outlet combination?

The existing switch:

The switch/outlet combination:

2 Answers 2

The two wires from the old switch go on the two top screws, hot on left and switched hot on right.

Add pigtails to the black and white and ground bundles with the wire nuts.

Black goes on hot side (left bottom screw).

White goes on right bottom screw.

Bare copper goes to green screw.

If there is metal link between the two screws on the hot side, then you could leave off the pigtail on the top screw.

A switched outlet needs exactly the same 3 wires as a smart switch:

• always-hot so the switch has something to switch, and for the receptacle
• Neutral to power the smart switch itself, or the return for the receptacle
• Switched-hot because that’s what the switch sends to the lamp.

Any switch already has always-hot and switched-hot, because that’s what switches do. As for neutral, look in the box and there it is – one single bundle that’s all-white. Don’t disturb any other wires in there.

Neutral connects to the only place it can, notably a silver screw. Always-hot will be shared. Though honestly, just guess. If you mix up the two hots, the only thing that’ll happen is the receptacle will be switched. In that case, swap the hots.

And ground of course, we don’t mention grounds because it’s not an active circuit wire (we hope) and it’s very simple to hook up (all grounds connect to all grounds).

I have an older house that has a single pole light switch in the bathroom.

it powers a single bulb vanity light above the mirror.

I would to replace it with a switch and GFCI outlet

there is just a black and white wire currently on single pole switch.

Is this something that can be done by either me or an electrician without costing too much?

if you need more info about my current wiring please let me know.

1 Answer 1

No. With just what you have now it is 100% impossible. Right now you have a switch loop which is just a constant hot and a switched hot. Even though one wire is white there is NO neutral in this box, both are being used as hots.

You could run a new cable to this box, but you best bet BY FAR is to have a circuit run to a new GFI receptacle and just leave the existing switch alone. This is almost certainly the only code legal way to go as well. Adding a new receptacle to an existing lighting circuit in a bathroom would not meet code and will almost certainly be inconvenient due to circuit overloading.

Not the answer you’re looking for? Browse other questions tagged electrical or ask your own question.

Related

Hot Network Questions

To subscribe to this RSS feed, copy and paste this URL into your RSS reader.

• Blog
• Facebook
• Twitter
• LinkedIn
• Instagram

Site design / logo © 2022 Stack Exchange Inc; user contributions licensed under cc by-sa. rev 2022.5.25.42222

By clicking “Accept all cookies”, you agree Stack Exchange can store cookies on your device and disclose information in accordance with our Cookie Policy.

Throughout your home, you will have different electrical needs. As a result, you might find yourself with a room that has switches in a spot where an outlet would be far more practical. If you’re not a trained electrician, it’s easy not to know what you can and can’t do when it comes to the electricity in your home.

Can a Light Switch Be Converted to an Outlet?

Yes, you can convert a light switch to an electrical outlet. However, because outlets and light switches have different functions, the wiring for one or the other will be different enough that you should trust a licensed electrician, such as Mr. Electric, to handle the project for you.

How an Electrician Will Change a Switch into an Outlet

Your first two choices are deciding whether to keep the switch and how you want the new outlet to function. Although you might not often use the existing light switch and think an outlet would better suit your needs, totally removing the light switch may not be the best course of action. Luckily, you don’t have to decide between outlet or switch, as you have options that will give you both outlets and switches. You can have your electrician wire the outlet so that the switch controls it, or the outlet can operate independently of the switch.

Anything related to electrical wiring is not a good candidate for a DIY home project. The inherent danger of working with electricity and the possibility of wiring an outlet incorrectly are not worth the risks. Here’s how your local Mr. Electric would install an outlet where your light switch is:

Identify which circuit the switch is on and turn off the power supply to that circuit to prevent electrocution.

Remove the switch from the wall and label the wires connected to it. The general rule for electrical wire color codes is that the red and black wires will be the live wires while a white wire will be neutral, but it’s possible that another color may be used.

Connect the wires to the proper terminals on the outlet. All wires must be attached correctly for the switch to work properly. This is something that a trained professional can do for you. A potential problem could arise if the person who originally installed the switch connected the wires incorrectly; if you replicate what was done previously, you will end up with the same faulty wiring job.

What Can Go Wrong When Turning a Light Switch into an Outlet?

Electricity makes life easier and more convenient, but wiring done wrong can lead to tragic consequences. Take a second to consider these common negative outcomes of DIY conversions before trying to convert your light switch to an outlet.

A combination light switch/outlet not always being on. If you’re not trying to fully replace a light switch with an outlet, a combo light switch and outlet can help give you the best of both worlds. However, if you don’t properly wire this fixture, you’ll end up with an outlet that only turns on with the switch, which might defeat the purpose of having both.

Accidentally reversing the hot wires and the neutral wire. This is one of the most dangerous outcomes you might come across. When you replace a light switch with an outlet and don’t connect the wires properly, you can create shock hazards.

Electricians Who Can Help You Change Your Switch to an Outlet

If you’re looking to increase the number of outlets in a room, converting your light switch to an outlet can be a great solution. But messing with electrical wiring and outlets can be a dangerous task, even if you’re an experienced DIYer. To ensure your electrical work is done properly and safely, contact the pros at your local Mr. Electric. Schedule an appointment or call us at (844) 866-1367 today.

Share:

• Author: Terry Peterman
• Category: Switches & Receptacles, Wiring Projects

Lately I have had many site visitors asking me to write an article on how to wire a duplex switch and receptacle combination device. While the switch/receptacle combo device is not common in the home, they have several unique applications where they can be very useful!

As with any electrical project, make sure that you take all necessary precautions, most important being to make sure you shut off the power. Always review the safety page on our website.

Another valuable resource available on our site is “The Basics of Household Wiring DVD”, which is also available as an instantly downloaded e-book. Follow this link to get your copy.

The switch/receptacle combo device is set up like a duplex receptacle, but has a 15A single-pole switch in one half, and a single 15A, 125V receptacle in the other half. They can work in conjunction with one another, or they can be connected and used independent of each other.

Here is a diagram showing the internal function of the switch/receptacle combination device.

Here is an actual picture of a Leviton Switch/Receptacle Combination Device.

I will discuss three different possible scenarios where a switch/receptacle combo device such as this would come in handy.

Scenario #1

In your garage or shop, you would like to install a task light, like a florescent light fixture over workbench. However, the walls are all finished so getting a new wire to a switch and then up to the light is not that simple. However, you have a receptacle just above the bench that you can get your power source from.

You can change this duplex receptacle to a switch/receptacle combination so that you still have power in the outlet, but can use the switch to control your new overhead task light. Fishing in a wire from the receptacle to the light fixture is fairly easy, so this is how you would wire the switch/receptacle combo device in this situation.

Scenario #2

A typical example of this situation is if you had the same scenario as above, but with a 3-wire circuit, such as in a kitchen split receptacle, and wanting to add some under-counter lighting for example.

Just as the receptacle that you replaced will have the tab on the hot side removed, here we have to remove the tab on the device as well. This will put the light on a different circuit as the receptacle, but again will give you the desired result of a usable receptacle, and a switched light fixture without a difficult wiring renovation.

Keep in mind that this isn’t the best situation, as you now lose the required amount of circuits in the kitchen. However it is an example of how we can have the switch and receptacle operating independently from one another on different circuits.

Scenario #3

Here is a situation where your desired result is a receptacle controlled by the switch in the combination device.

Let’s say you have a task light for your shop, and it is cord connected and designed to be mounted over your work area and then just plugged in to an outlet. Instead of plugging the light in and out every time you want to control the light, this will allow you to keep it plugged in and use the switch for control.

So there you have three examples of where a switch/receptacle combination device like this can come in handy.

Remember that if you have suggestions for a topic you would like to see me cover in the content of our website, drop me an e-mail at [email protected]

How Can I Replace a Garbage Disposal Switch with a Combination Switch? How to Wire a Combo Switch Outlet, Wiring a Combo Device Switched Outlet or Half Hot Outlet, How to Convert a Switched Outlet.

Electrical Video #1

Electrical Wiring Tips

Helping You to Wire It Right!

See more Home Electrical Wiring Videos

See the Electrical Wiring Video #2 Below:

How to Wire a Combo Switch Outlet
Electrical Question: How Can I Replace a Garbage Disposal Switch with a Combination Switch?

• I’m trying to replace a garbage disposal switch with a combination switch, and keep the bottom plug live at all times.
• I’m not sure if it can be done with just the black, white, and ground wire.

This electrical question came from: Scott, a Homeowner from Milwaukee, Wisconsin.

Thanks for your electrical question Scott.

Dave’s Reply:

Wiring a Combo Switched Outlet

Application: Wiring for a Half Hot Switched Outlet.
Skill Level: Intermediate to Advanced – Best Installed by a Electrical Contractor or Certified Electrician.
Tools Required: Electricians Tools, including Pouch of Hand Tools, and a Voltage Tester.
Estimated Time: Depends on personal level experience, ability to work with tools and install electrical wiring.
Precaution: Identify the circuit power source at the panel, turn it OFF and Tag it with a Note before installing wiring or working or making connections.
Notice: Installing additional outlet wiring should be done through the local building authority, according to applicable local and national electrical codes, with a permit, and have required inspections.

Part 1. Wiring a Combo Switched Outlet or Half Hot Outlet

Applications for Combo Switch Outlets

• Scott, a combo switch outlet will require the set of wires that are for the switched device, in this case the disposal, and the outlet will require a hot, neutral and ground wire.
  • If the combo switch outlet is being installed at the kitchen counter top area then the combo switch outlet will need to be a GFI combo switch outlet.

Part 2. Switch and Outlet Wiring

How to Convert a Switched Outlet

• The switch I am replacing has two red wires plugged into the back of the receptacle, and two black wires plugged into the one below.
  • If I want to keep the same set up I can just connect the two red to the top brass screw and the two black to the bottom but must break the small brass tab between the screws not the plastic, correct?
• If I don’t care to use the wall switch all I have to do is to cap off the red and connect one black to one brass screw and one to the other brass screw w/o touching the brass tab,correct?

Wiring Modification for a Non Switched Outlet

• Insulating the Unused Wire
  • Yes, the red wire may be capped off and the outlet may remain hot all the time.
